Product Description:
Edan F9 Express “Loaded” Fetal/Maternal Monitor. F9 is high-end fetal & maternal monitor, it offers the most advanced integrated monitoring for the delivery room in big hospital, private obstetrician’s office, antepartum clinic. F9, designed for moving situations, covers the entire continuum of antepartum, intrapartum and postpartum applications.
Edan F9 Express Fetal/Maternal Monitor Features: Basic parameters: FHR, TOCO, Event Mark, AFM, Internal parameters: IUP, DECG (optional), and 24 hours waveforms playback. Optional Built-in wireless module, Software for data transmission to PC 150/152 mm wide paper. Support US/International standard paper and has 1,2,3 cm/min real-time printing speeds. Quick printing for stored waveform. Lithium battery for 4 hours continuous working. 12.1- inch high-resolution color folding up LCD touch-screen. Probe rack and wall mounting rack. Call for our Best Price. See tabs for more information.
- Basic parameters: FHR, TOCO, Event Mark, AFM
- Internal parameters: IUP, DECG (optional)
- 24 hours waveforms playback
- Optional Built-in wireless module
- Software for data transmission to PC
- 150/152 mm wide paper
- Support US/International standard paper
- 1,2,3cm/min real-time printing speeds
- Quick printing for stored waveform
- Lithium battery for 4 hours continuous working
- 12.1- inch high-resolution color folding up LCD touch-screen
- Probe rack and wall mounting rack
- Handle for easy carry
- Optional Fetal Stimulator
- 12 – crystal pulse wave Doppler water-proof transducer for FHR detection
- Signal Overlap Verification
- Maternal parameters: MECG, NIBP, MSpO2 are available
- Dimensions: 347 mm x 330 mm x 126 mm
- Weight: Approximately 6 kg
- Pulse Repetition Rate: 2KHz
- TOCO Range: 0% – 100%
- Zero Mode; Automatic/Manual
- HR Measurement Range: 30 bpm -240 bpm
- HR Measuring Accuracy: ± 2 bpm
- Power Supply: 100 – 240 V
- Battery: 14.8 V rechargeable Li-ion battery
- Display: 12.1″ color TFT-LCD
- Display Resolution: RGB 800 W x 600 H
- DECG Technique: Peak-peak detection technique
- ECG Manual control ECG Waveform display
- ECG Falls off: Detect Automatically
- SpO2 Measurement Range: 50% – 100%
- Resolution: 1%
- NIBP (for adult)Systolic Pressure: 40 mm Hg – 270 mm Hg
- NIBP (for adult)Diastolic Pressure: 10 mm Hg – 215 mm Hg
- Recorder Paper: Z-fold, 150/152 mm thermosensitive paper
- Recording Speed: 1/2/3 cm/min., 25 mm/sec for history data
Edan F9 Express Fetal/Maternal Monitor Brochure (click to view)
Available Options Sold Separately:
- Optional Built-in wireless module
- Optional Fetal Stimulator
- MT-803 Luxury Trolley for F Series Fetal Monitors: $850

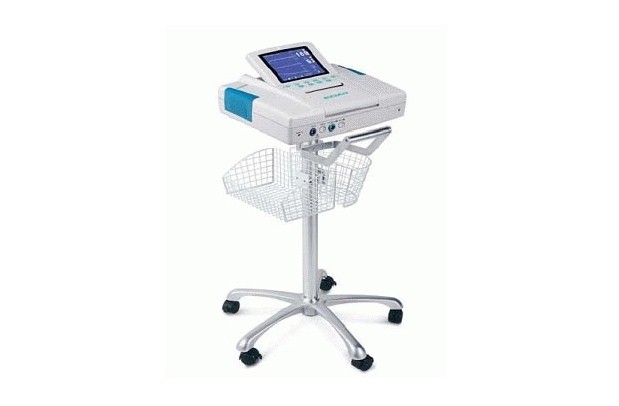

- MT-207 & Plate F6F9 Center Pole Trolley (roll stand) with Basket and locking Casters (shown below): $375
