Product Description:
Oakworks 3 Section General Ultrasound Table. Oakworks has been providing customers with innovative medical equipment, excellent service, and cost-effective solutions for over 30 years. Collaborating with leaders in the medical specialties resulted in cutting-edge table designs and patient positioning devices. Oakworks Medical is ISO 13485:2003 certified.

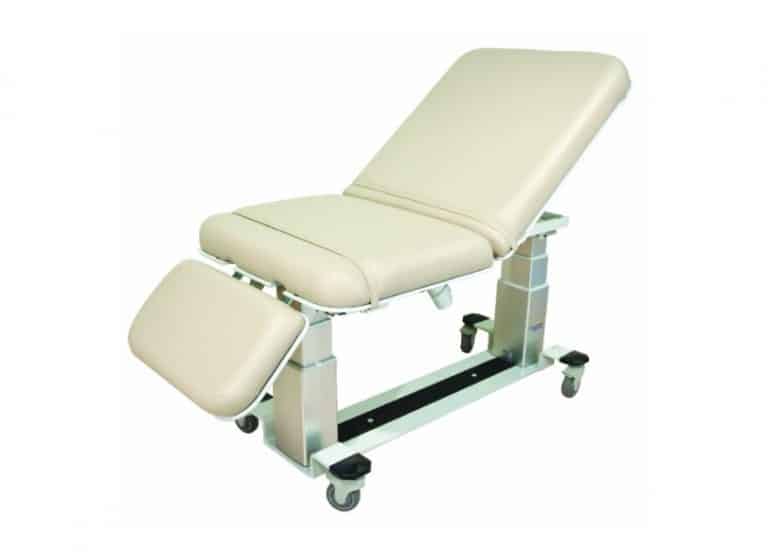

Oakworks USG3 Ultrasound Table Features: A three-section top with a wide variety of Optional Features to customize your specific needs. This table has been designed by leading Ergonomic Specialists and exceeds industry standards for Sonography. The General 3-Section Top Ultrasound Table has a dynamic 22″ to 38″ adjustable height range for safe wheelchair transfer and ergonomic working heights.
Additional Features: The USG3 has a 550 lb capacity lift and load rated and comes with a 3 Year Warranty. The twin tower design adds strength and rigidity and its sleek base design promotes unobstructed compatibility with ultrasound equipment ensuring better ergonomic conditions for the sonographer. See tabs for more information.
- Three section top table
- 12 Optional features to customize your table
- Electric Height Range 22″ – 38″
- Safe for wheelchair transfer and ergonomic working heights
- 550 lb bariatric rated lift and load capacity
- Twin tower design for added strength and rigidity
- Designed by leading Ergonomic Specialists
- Exceeds the “Industry Standards for Sonography”
- Sleek base design promotes unobstructed compatibility with ultrasound equipment
- Trendelenburg/Reverse Tilt: 15º
- Electric Fowler
- Hand Control (Height, Trendelenburg/Reverse, and Fowler)
- Manual Adjustable Foot Rest (4 positions)
- Paper Roll Holder
- 3 Year Warranty
- FDA Listed, ETL Approved, CE Marked
- Patient weight capacity: 550 lbs.
- Height range: 22″- 38″
- Width: 27″ or 30″
- Length: 72″
- Top 3 section: Fowler – 34″, Seat – 24″, Footrest – 13″
- Trendelenburg/Reverse: ±15º
- Standard control: 3 motion hand
- Manual 4 position Leg Rest: 0-90º
- Table weight: 359 lbs.
- Warranty: 3 years parts, 1 year labor
- Certifications: FDA listed, CETL approved, CE marked
- 27″w P/N: 62963
- 31″w P/N: 63028“w
Oakworks TerraTouch Upholstery (Click to view)
Please Note: Upholstery colors will vary with individual monitor settings and capabilities.
Oakworks General Ultrasound Table Brochure (click to view)
General Ultrasound Table: 3 Section Video (click to view)
