Product Description:

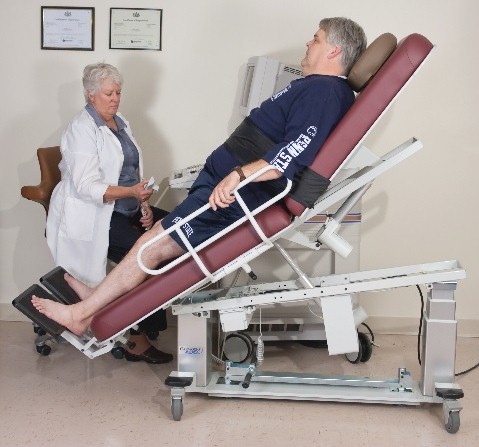

Oakworks Vascular Table with Fowler – with Feature Package. Dual towers & Electric Fowler makes 70° reverse Trendelenburg a reality. Effectively standing and full weight bearing. No more sitting on the floor to scan. Split drop footboard makes non-weight bearing scans safe and easy. Oakwork’s Vascular Table has a bariatric patient weight capacity of 550 lbs.
Vascular Table Features: Electric Height Range 23″ – 40″, Trendelenburg (Tilt): 15º, and Reverse Trendelenburg (Tilt): 40º + Electric Fowler = 70º. Integrated Foot Board (split, drop away), Locking Casters, Side Rails (2), and 2 Patient Restraint Straps included. Elevate the upright table to reduce/prevent technologist bending to reach lower extremity veins. Headrest and pad for carotid studies provides comfort and access for patient and sonographer. Your Choice of 21 Beautiful TerraTouch Upholstery Colors.
Feature Package Includes Hand Control (All movements), 4 in. (10cm) locking casters, Integrated footboard (split, drop away), Paper roll holder, Patient safety strap, and Side Rails (2) 23.5 in. (60cm) long x 6 in. (15cm) tall (from the surface of the table). Comes with 3 years parts, 1-year Labor Warranty. FDA Listed, cETL Approved, CE Marked. See tabs for more information.
- Electric Height Range: 23” – 40”
- Trendelenburg Tilt: 15º
- Reverse Trendelenburg Tilt: 40º + Electric Fowler = 70º
- Electric Fowler
- Patient Weight Capacity: 550 lbs.
- Integrated Foot Board (split, drop away)
- Locking Casters
- Patient Restraint Strap
- Side Rails (2)
- Hand Control (All movements)
- Paper Roll Holder
- Warranty: 3 Years Parts, 1 Year Labor
- FDA Listed, ETL Approved, CE Marked
- Terra Touch ™ Upholstery
- Patient Weight Capacity: 550 lbs
- Height Range: 23″- 40″
- Width: 27″ or 30″
- Length: 72″
- Top: Fowler 34″, Seat 38″
- Trendelenburg: 15º
- Reverse Trendelenburg: up to 70º
- Padding: 3″ multi-layer
- Upholstery: TerraTouchTM
- Table Weight: 313 lbs
- Warranty: 3 years parts, 1 year labor
- Certifications: FDA listed, cETL approved, CE marked
- 27″w P/N: 66783
- 30″w P/N: 64219
TerraTouch™ Upholstery Color Options (click to view)
Please Note: Upholstery colors will vary with individual monitor settings and capabilities.
Oakworks Vascular Table with Fowler Brochure (click to view)
Oakworks Vascular Table Video (click to view)
