Product Description:
The OAKWORKS® CFPM400 Imaging Table. The Integrated Headrest Top incorporates Oakworks brand reputation for high quality and reliability in this new, cost-effective table. The CFPM400 is designed to accommodate mobile and ceiling suspended C-Arm systems. The CFPM400 is a 4 movement table that has all the features required for successful pain management image-guided procedures.
CFPB400 Features: The Carbon Fiber Top has a dynamic height range of 26″ to 44″ accommodates low height patient wheelchair transfers to maximum height C-Arm mobility requirements for full lateral imaging. is capable of 10″ of Powered Longitudinal Travel (extend/retract), 15° Trendelenburg Tilt, 12° Reverse Trendelenburg, and 15° of Lateral Tilt, while at the same time supporting up to a 500-pound patient. Exceptional value for a 500 lbs patient weight capacity table. The table is mounted on a new low profile base and can be easily moved from room to room and secured with 4 locking casters. Included with every table are a radiolucent table top pad, 1 crescent face rest pad, 2 supine cranial pads, and 1 padded safety strap.
Table promotes 56″ of Metal Free Imaging Area for maximum C-Arm efficiency and is controlled by 1 hand control. Ideal for pain management practices, surgical centers, hospitals, and other multi-disciplinary medical facilities. Compatible with all major C-arm products. Cost effective solution for all C-Arm imaging applications… you will NOT find a better value on the market today! See tabs for more information.
CFPM400 Features:
-
Designed to accommodate mobile and ceiling suspended C-Arm systems
-
The CFPM400 is a 4 Powered Movement Table
-
Superior image quality for fluoroscopy guided procedures
-
All the features required for successful pain management image-guided procedures
-
height range of 26″ to 44″
-
Accommodates low height patient wheelchair transfers
- Carbon fiber top
- 10″ of Powered Longitudinal Travel
-
15° Trendelenburg Tilt
-
12° Reverse Trendelenburg
-
15° of Lateral Tilt
-
Weight Capacity: 500 lbs
-
New low profile base
-
Easily moved from room to room
-
Secured with 4 locking casters
-
Promotes 56″ of metal-free imaging area
- Controlled by 1 hand control

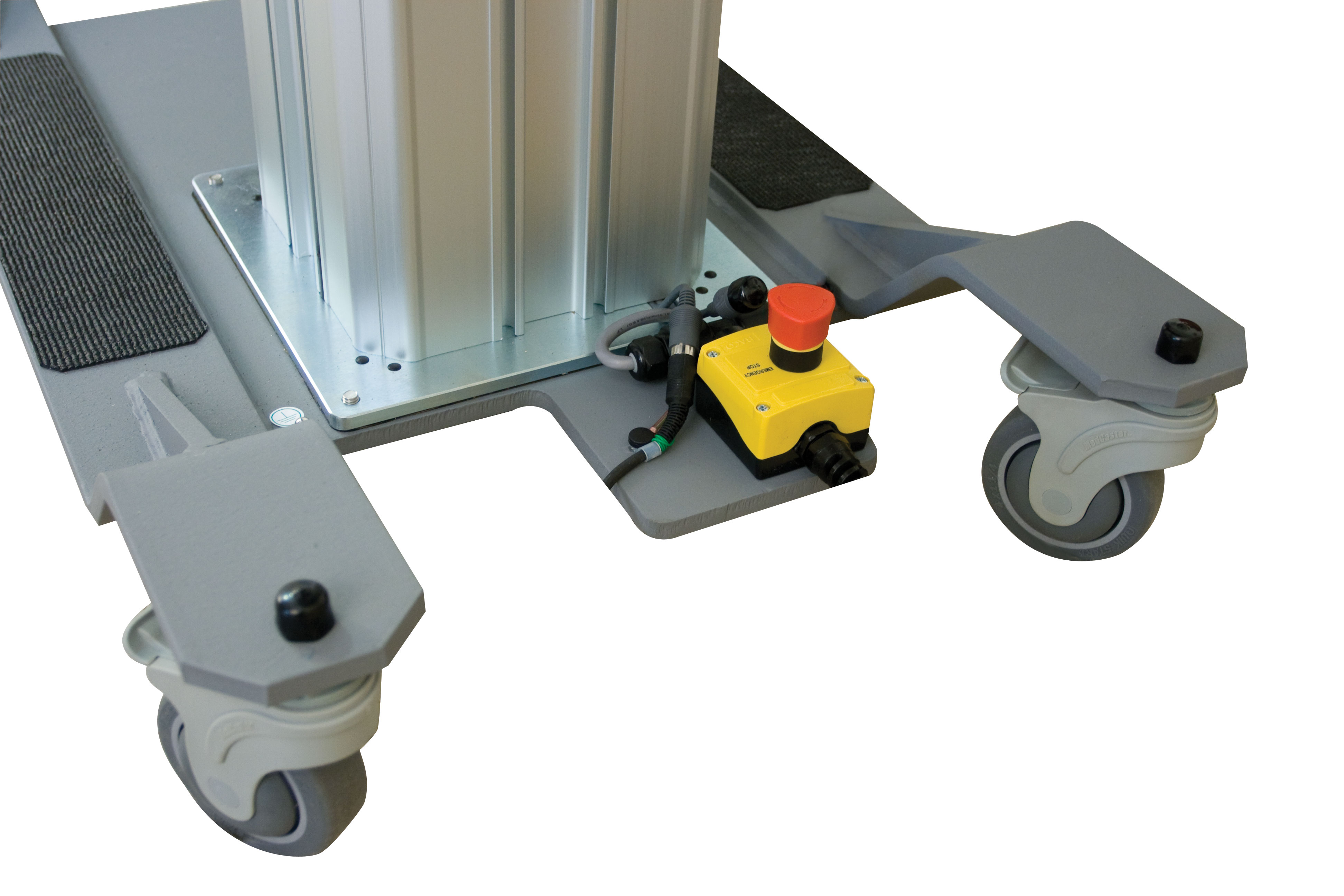

- Kill Switch (see close up below right)
-
Warranty
Included with Table:
-
Radiolucent Table Top Pad
-

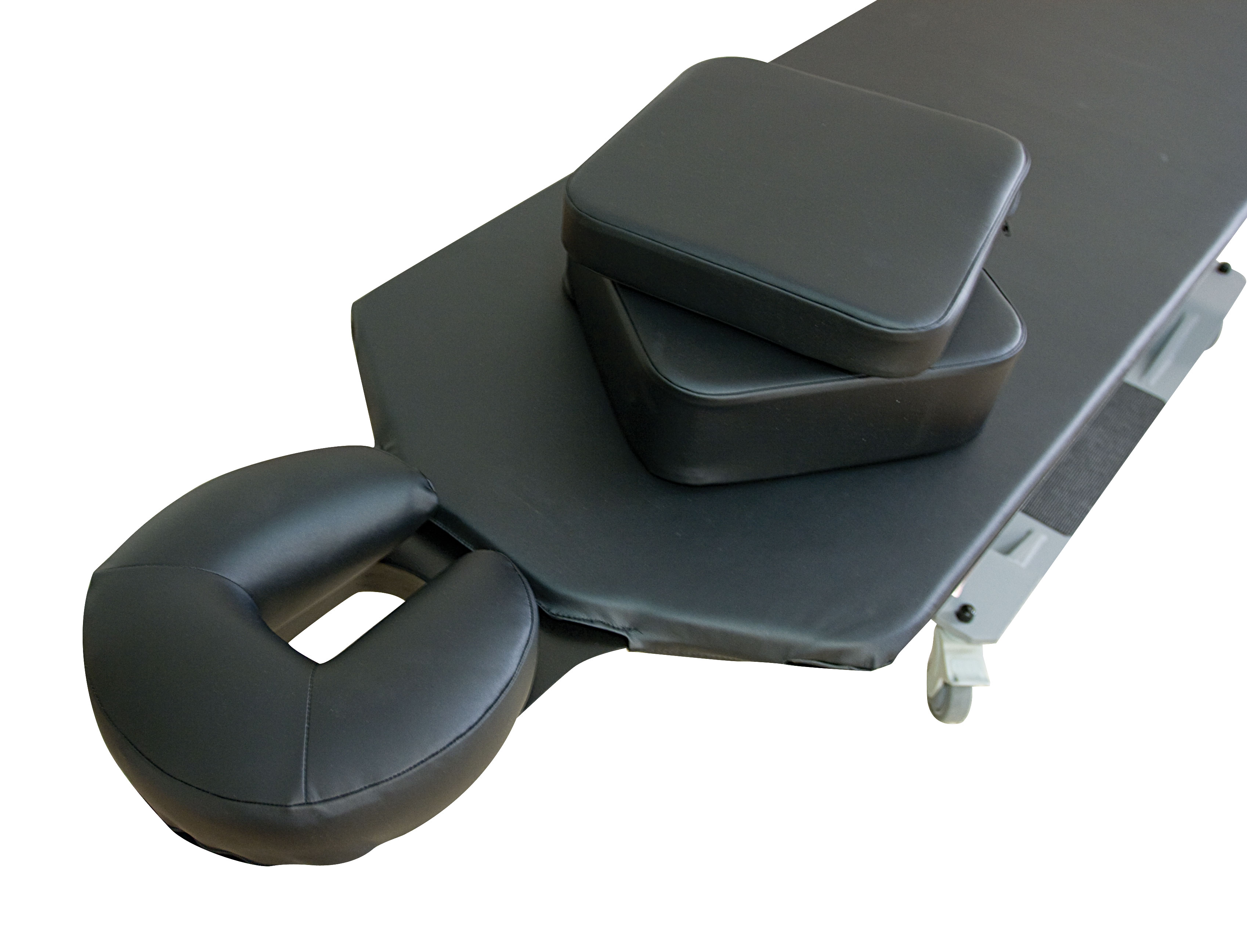

1 Crescent Face Rest Pad and 2 Supine Cranial Pads: (see below left)
- 1 Padded Safety Strap
- 22” x 84” Carbon Fiber Top with integrated headrest
- 56″ of metal free imaging space
- Patient weight : 500 lbs (226 kg)
- Height Range: 26″ – 44″
- Electronics: 110 volt motor + 2x24v Tilting Motors (1 foot control 1 Hand Control)
- 1 Power Kill Switch
- *Locking Casters
- Hand Rail Table Weight: 415 lbs (188 kg)
- Frame: Single tower steel base
- Warranty: 3 years parts, 2 years labor
- P/N: 65447-T01
