Product Description:

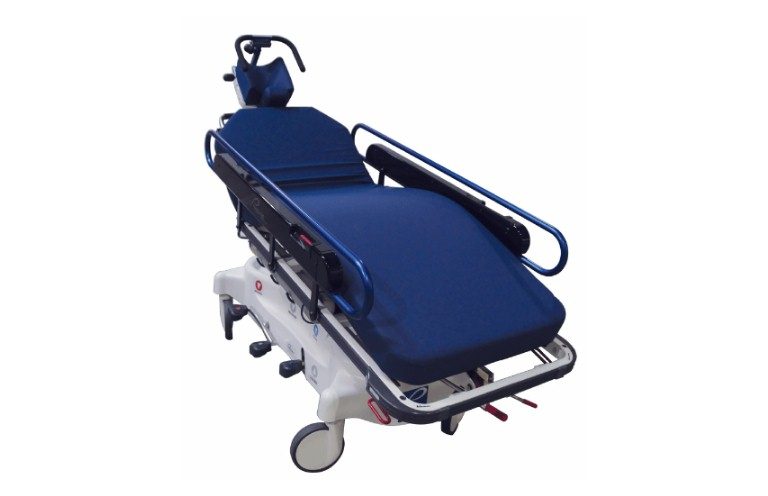

Pedigo Eye, Neck & Head Stretcher model number 7500-NE. The new 7500-NE Stretcher is designed specifically for eye, neck and head surgery, has a Sturdy solid steel column with a single hydraulic cylinder design uses sixteen precision ball-bearings to smoothly raise/lower the patient, has and IS6 (instant steer six wheel steering) and has a 750 lb. weight capacity.
Additional 7500-NE Stretcher Features: A Rail System that is Easy to wipe clean and disinfect in the ongoing battle with germs and bacteria. This 56″ stainless steel side rail is infinitely adjustable and can be locked at any height without interfering with the surgical process or patient entry or exit onto stretcher. Pedigo’s ergonomic Quick-Release O2 Tank Holder is side mounted and conveniently located under the litter to reduce caregiver bending. (US Patent 7,865,984 B2). Retractable Push Handles – Easily extended or retracted push handles by engaging the safety release lock and rotate each handle upward. The Hydraulic Foot Pedals of the 7500-NE are located on each side of the stretcher within the patient care zone. Pedal function graphics are color-coded for quick and easy recognition. See tabs for more information.
- 750 lbs. weight capacity rating
- Stainless steel glide side rails
- Pneumatic articulating head & neck rests
- Pads – 4″ Head & 6″ Neck
- 4″ Premium mattress
- Four IV pole receptacles
- Four restraint strap positions
- Quick-Release O2 Tank Holder (US Patent 7,865,984 B2)
- Integrated push/pull handles with latch release
- Pneumatic adjustable fowler
- Mechanical Level Lock
- Hydraulic recovery knee gatch
- Hydraulic height adjustment – dual side-mounted foot pedals
- Instant Steer – Six Wheel Steering
- Single column hydraulic cylinder design
- Brake foot pedals
- 8″ easy mobility casters
- Latex Free
- Weight Capacity: 750 lbs
- Overall Length: 88″
- Overall Width: 34″
- Height Range – Low: 23″
- Height Range – High: 32.75″
- Fowler Backrest: 0º-90º
- Trendelenburg: +12º
- Reverse Trendelenburg: -7º
- Head Rest Range: Up 1.5″, Down 1.5″
- Total Head Rest Range: 3″
- Head Rest Tilt Range: 30º – 18º
- Patient Surface: 82: x 30″
- Side Rails: 12.5″ x 56″
- Casters: 8″
- Warranty: 1 Year parts and labor
Available Options Sold Separately:
Factory Installed Options:
- IV Pole: Fixed, Adjustable/Removable, Adjustable/Attached, or Fold Down
- IV Pole Caddy
- Restraint Strap Options: Velcro or Buckle
- Fowler Options: Pneumatic or Electric
Additional Options:
- Stirrups with Adapter
- Monitor Tray Board with Chart Holder
- Push/Pull Bar with Optional Chart Holder
- Vertical O2 Tank Holder
