Burton AIM-100 Wall Model: A100W
Burton AIM-100 Wall Model: A100W
Burton AIM-100 Wall Model: A100W
Price
$3,328.00
Contact Us
About this Product
About this Product
Product Description:

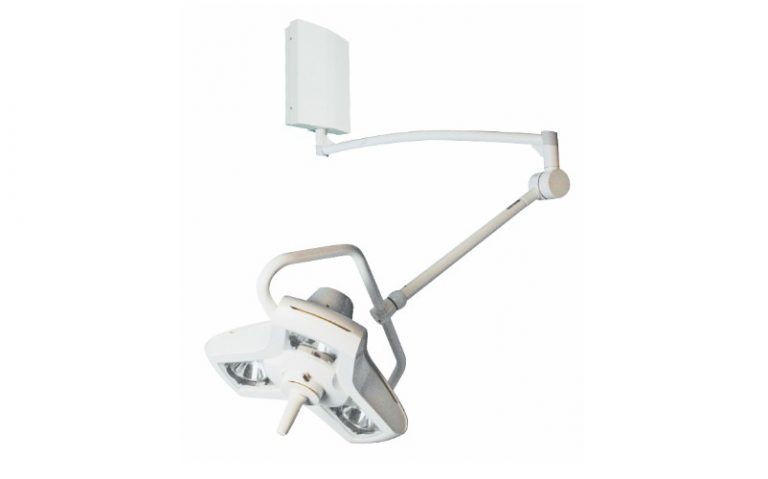

Burton AIM-100 Wall Model: A100W. Providing both amazing value and unparalleled aesthetics, Burton’s Burton AIM-100™ Wall Model Burton A100W also boasts limitless rotation on ceiling mounts (a feature previously available only on OR type lights). Highest intensity illumination, very smooth focus and superior maneuverability.
Burton AIM-100W Features: A longer arm system ensures that the light can be positioned in the widest range of positions possible, making the AIM-100® ideal for outpatient procedures in a variety of settings and practices including trauma centers, ERs, ambulatory surgery centers, ICUs, physician offices, clinics, plastic surgery, dermatology and ophthalmology. See tabs for more information.
- High intensity of 14,800 fc (160,000 lux) at 24″ and 5800 fc (63,000 lux) at 1 meter
- 3700° K color temperature offers natural and true coloring
- Uses three 35-watt quartz halogen bulbs – each rated with a 2,000-hour bulb life. Bulbs wired in parallel for continuous operation

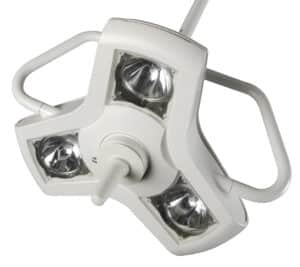

- Compact 20″ (51 cm) diameter lighthead
- Extremely smooth focus mechanism with center sterilizable handle.
- 360° limitless arm and mounting system rotation around vertical axes (on single ceiling models)
- Cool operation for long hours of use
- High CRI (Color Rendering Index) of 97
- 120 volt standard; 100/240 volt models available
- 5-year limited warranty
- UL 60601-1/ 60601-2-41 Certified
- Illuminance:* 14,800 FC (160,000 Lux) at 24″ and 5800 fc (63,000 Lux) at 1 meter
- Color temperature: 3700° K
- Diameter of lighthead: 20″ (51 cm)
- Light field diameter: 9.6″ – 12″ (25 cm – 31 cm)
- Depth of Illumination: 47″ (1.2 m)
- Focusing: Adjustable by rotating center handle CRI 97
- Rotation: 360° (limitless) on single ceiling models
- Sterilizable handle: Locks into position with one hand
- Number of bulbs: 3
- Light sources (halogen): 35 W IRC, 12 volt, hi-pin
- Rated life of halogen lamp: 2,000
- Swivel radius of lamp housing-ceiling mounted: 71″ max.*
- * Height movement of lamp housing-ceiling mounted: 41″ vertical movement
- Minimum ceiling height/maximum ceiling height: 7 ft./12 ft.
- Power: 116 Watts Electrical system standards: UL 60601
- Total weight: 35 lbs. (floor version), 34 lbs. (single ceiling version)
Available Options Sold Separately:
- Set of 3 AIM-100® Replacement Bulbs: 1017111PK
- Sterilizable / Autoclavable Handle: 1017040
- Disposable Handle Covers, 25/Box: 0008100PK
- Seismic calculations available: call for details
