Product Description:

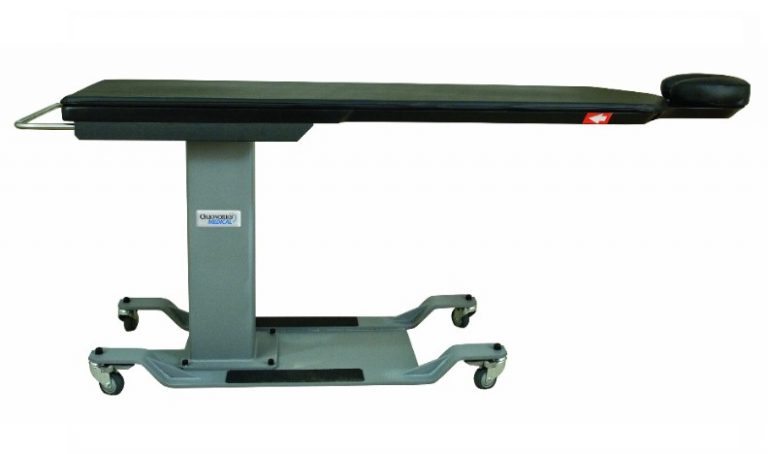

OAKWORKS® CFPM100 Imaging Table. The CFPM100 is our newly released single tower lift system that provides the imaging market an exceptional value for a 500 lbs patient weight capacity table. This table is ideal for pain management practices, surgical centers, and other multi-disciplinary medical facilities and is compatible with all mobile c-arm imaging systems.

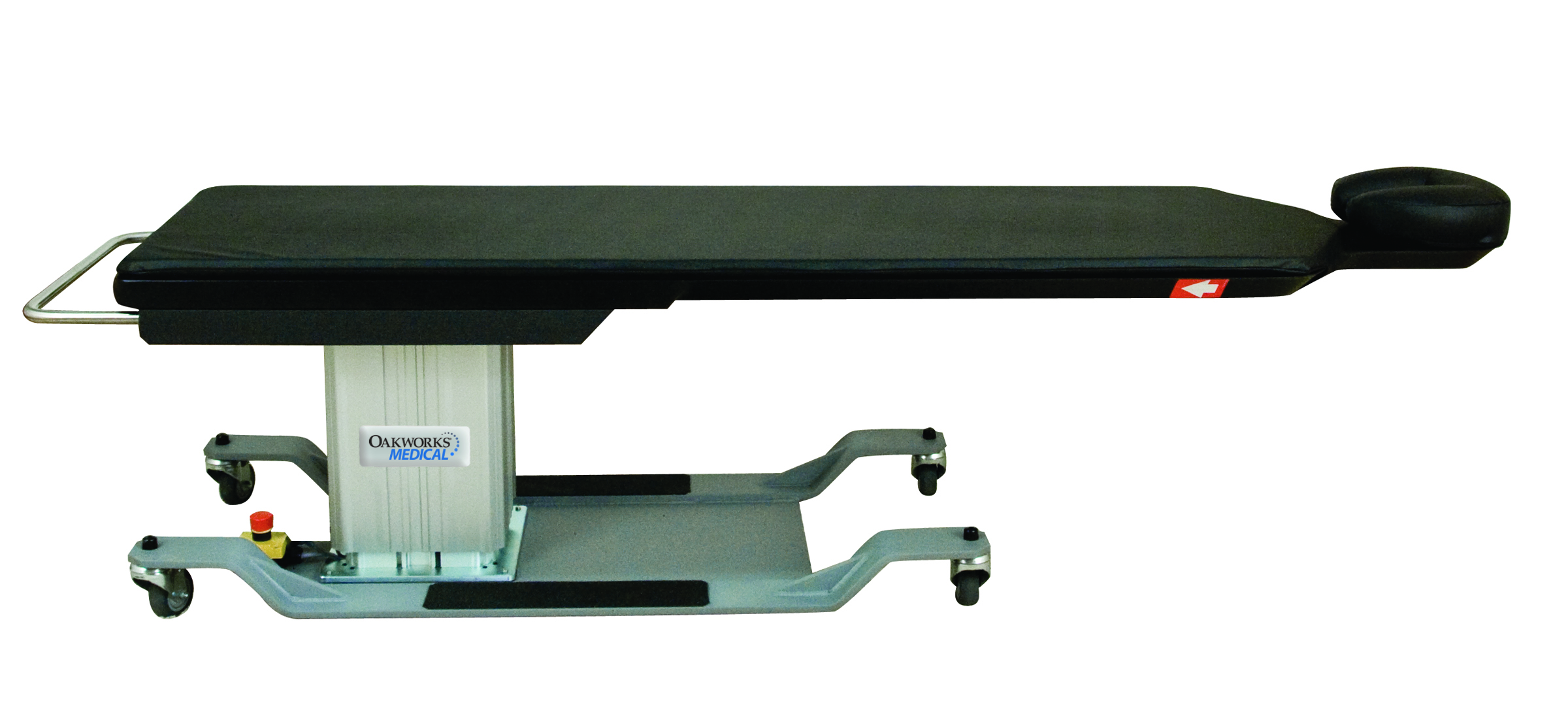

CFPM100 Features Include: The 25″ – 43″ adjustable electric height range promotes safe and secure wheelchair transfer due to its super low range of 25″ while accommodating the higher ergonomic working requirements at 43″. Other technology advancements designed in this product include a new soft-touch table base material. This durable base material will protect and minimize C-Arm scrapes and damage.
Included With Every Purchase: Radiolucent Comfort Foam™ table top pad, locking casters, crescent face rest pad (included with integrated headrest top), patient safety straps (2) Cost-effective solution for new institutions, expanding facilities, and start-up practices who require a diving board style elevating imaging table. See tabs for more information.
- Integrated Headrest Top
- Single tower lift system
- Electric Height Adjustment with a range of 22″ to 40″
- Weight capacity: 500 lbs distributed evenly
- Compatible with all mobile c-arm imaging systems
- Table Movement: Height Adjustment only
- Superior Image Quality for Fluoroscopy Guided Procedures
- Adjustable Electric Height Range
- Soft touch table base material
- Durable base material Protects and Minimize c-arm scrapes and damage
- Comes standard with Foot Control
- Warranty
- Optional 2″ thick table top pad available
Included with Table:
- 1 in. (3cm) Radiolucent Comfort Foam™ table top pad
- 4 in. (10cm) locking casters
- Crescent face rest pad (included with integrated headrest top)
- Patient safety straps (2)
- Carbon Fiber Top with Headrest Dimensions: 22″x 84″
- Imaging Space: 56″ of Metal Free Space
- Patient Weight Capacity: 500 lbs distributed evenly
- Electronics: 110 Volt Motor
- 1 Foot control
- 4″ Locking Casters: Locking / Unlocking casters for mobile or
permanent positioning (shown below right) - Hand Rail (shown below left)
- Table Weight: 343 lbs
- Frame: Single Tower Steel Base
- P/N: 55569-T01
- Warranty: 3 years parts, 2 years labor
Optional Accessories Sold Separately:
- Carbon Fiber Arm-board (Standard or Wide shown below left)
- Spinal Imaging Platform II
- Surgical Headrest
- Fluoro Extender (shown below, mouse over for other application)
- Semi-Round Bolsters
- Memory Plus Face Rest Pad
- Prone Pillow
- 2″ Thick Table Top Pad
- Adjustable T-Rail Clamp
- 5″ Locking Casters
