Product Description:
The OAKWORKS® CFPM400 Imaging Table. The Rectangular Top incorporates Oakworks brand reputation for high quality and reliability in this new, cost-effective table. The CFPM400 is designed to accommodate mobile and ceiling suspended C-Arm systems. The CFPM400 is a 4 movement table that has all the features required for successful pain management image-guided procedures.
CFPB400 Features: The Carbon Fiber Top has a dynamic height range of 26″ to 44″ accommodates low height patient wheelchair transfers to maximum height C-Arm mobility requirements for full lateral imaging. is capable of 10″ of Powered Longitudinal Travel (extend/retract), 15° Trendelenburg Tilt, 12° Reverse Trendelenburg, and 15° of Lateral Tilt, while at the same time supporting up to a 500-pound patient. Exceptional value for a 500 lbs patient weight capacity table. The table is mounted on a new low profile base and can be easily moved from room to room and secured with 4 locking casters. Included with every table are a radiolucent table top pad, 1 crescent face rest pad, 2 supine cranial pads, and 1 padded safety strap.
Table promotes 56″ of Metal Free Imaging Area for maximum C-Arm efficiency and is controlled by 1 hand control. Ideal for pain management practices, surgical centers, hospitals, and other multi-disciplinary medical facilities. Compatible with all major C-arm products. Cost effective solution for all C-Arm imaging applications… you will NOT find a better value on the market today! See tabs for more information.
- Designed to accommodate mobile and ceiling suspended C-Arm systems
- The CFPM400 is a 4 Powered Movement Table
- Superior image quality for fluoroscopy guided procedures
- All the features required for successful pain management image-guided procedures
- height range of 26″ to 44″
- Rectangular Top
- Accommodates low height patient wheelchair transfers
- Carbon fiber top
- 10″ of Powered Longitudinal Travel
- 15° Trendelenburg Tilt
- 12° Reverse Trendelenburg
- 15° of Lateral Tilt
- Weight Capacity: 500 lbs
- New low profile base
- Easily moved from room to room

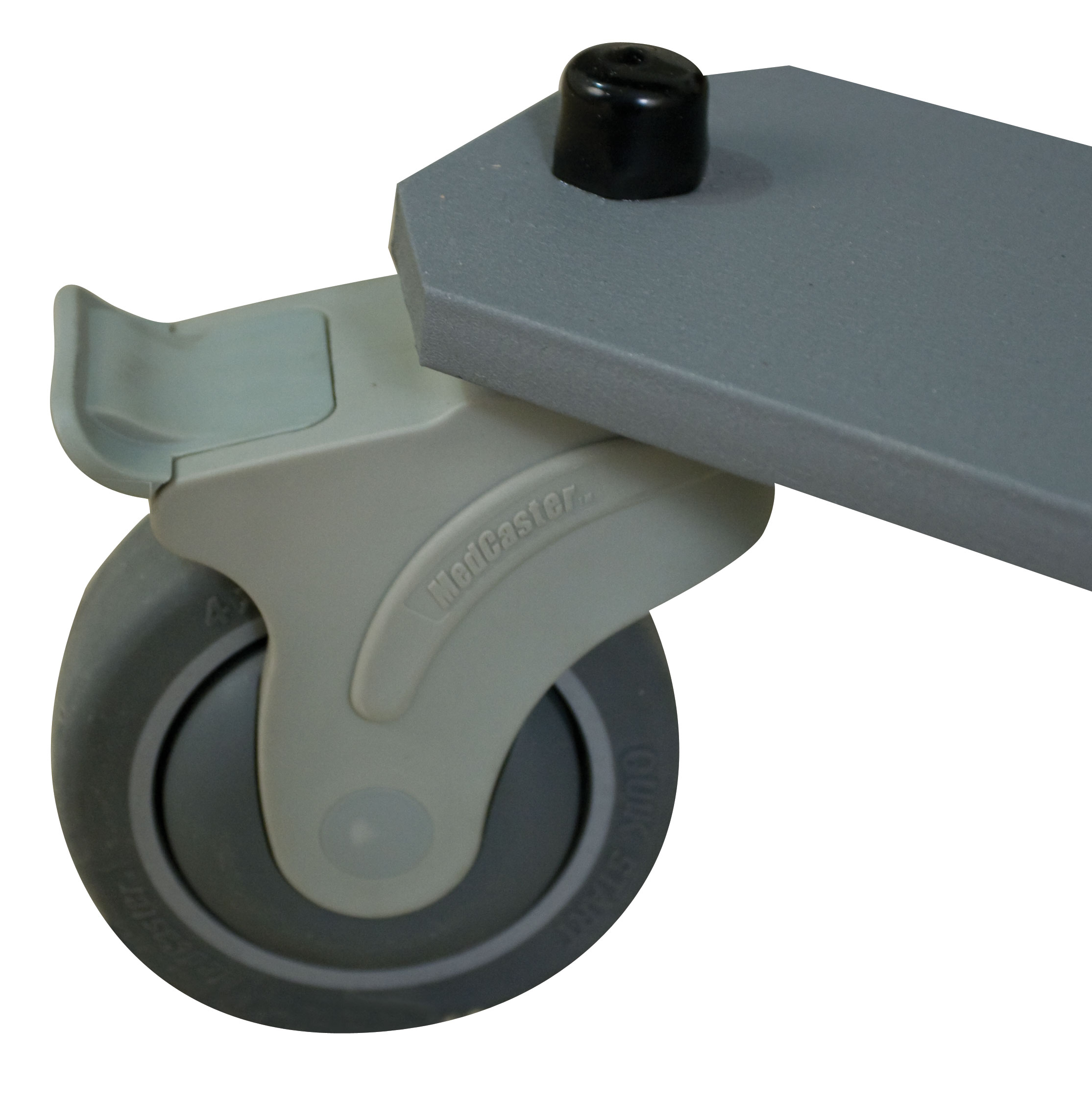

- Secured with 4 locking casters
- Promotes 56″ of metal-free imaging area
- Controlled by , hand control
- Kill Switch (see close up below right)
- Warranty
Included with Table:
- Radiolucent Table Top Pad
- 1 Crescent Face Rest Pad and 2 Supine Cranial Pads: (see below left)
- 1 Padded Safety Strap
- 22″ x 84″ Carbon Fiber Top with integrated headrest
- 56″ of metal free imaging space
- Patient weight : 500 lbs (226 kg)
- Height Range: 26″ – 44″
- Electronics: 110 volt motor + 2x24v Tilting Motors (1 foot control 1 Hand Control)
- 1 Power Kill Switch
- Locking Casters
- Hand Rail Table Weight: 415 lbs (188 kg)
- Frame: Single tower steel base
- Warranty: 3 years parts, 2 years labor
- P/N: 65570-T01
Oakworks CFPM400 Brochure (click to view)
Oakworks CFPM400 Video (click to view)
Available Options Sold Separately:
- Sliding Cardio Panel – Electric – 30in. width + left side only
- Sliding Cardio Panel – Manual – 30in. width + left side only
- Side Rails (2)
- Procedure Tray (30″ width table only)
Available Accessories Sold Separately:
- Carbon Fiber Arm-board, 180 ° articulation, slides under table pad
- Fluoro Extender, Polycarbonate-205 (shown below center)
- 8″ x 26″ Semi-Round Bolsters
- Prone Pillow

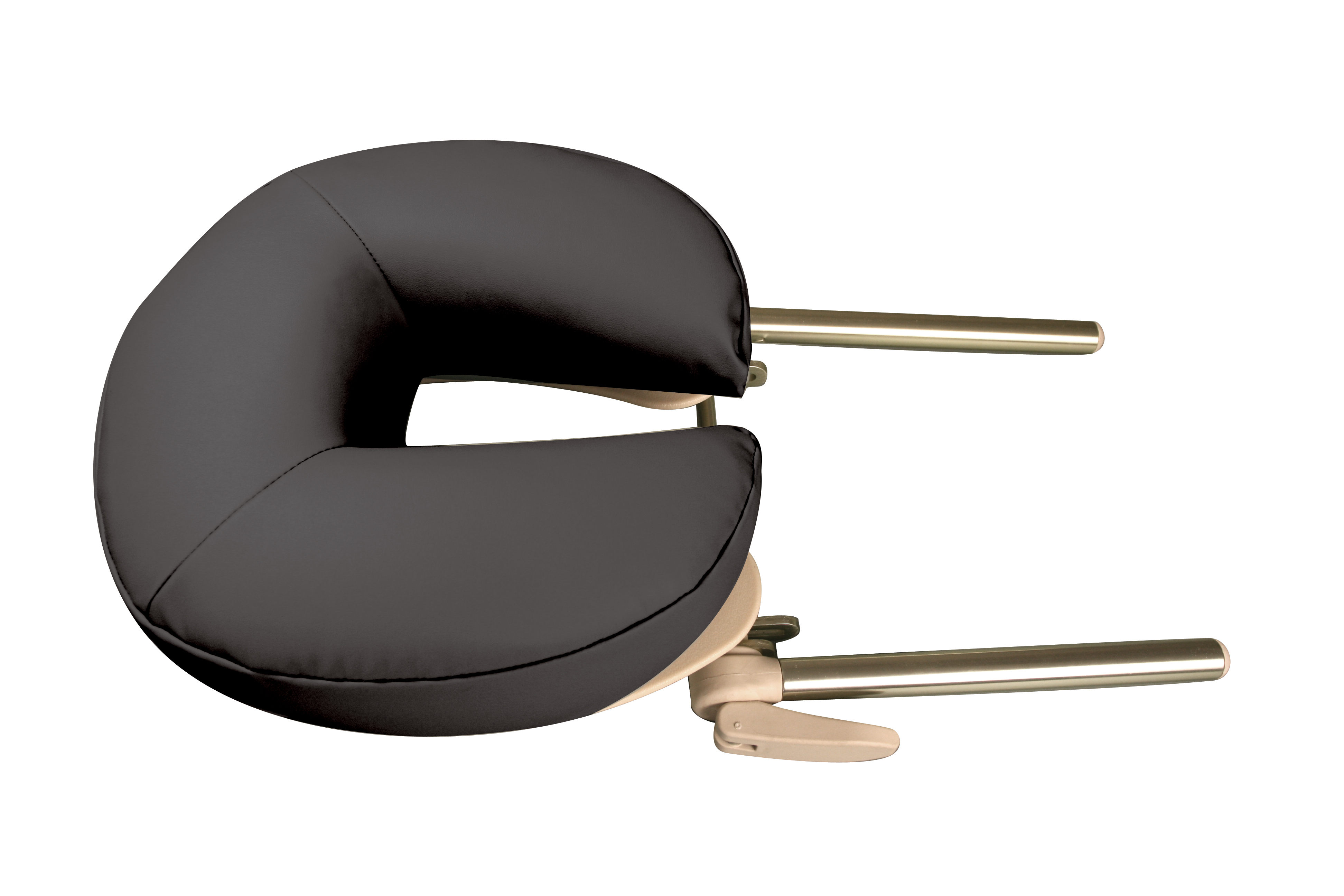

- Adjustable Face Rest Platform with Memory Foam Crescent (shown below right)
- Foot Control
