Product Description:
Oakworks® DTPM300 Imaging Table is ideal for pain management treatment centers, surgical centers, and other multi-disciplinary medical facilities where a cost-sensitive solution without compromise is needed. Oakworks has been providing customers with innovative medical equipment, excellent service, and cost-effective solutions for over 30 years.
DTPM300 Features 3 Movement Imaging Table and Electronic Height Range from 24″ to 40″ along with 40″ Open Space between Towers. The Manual Traveling Top has an overall 23″ travel. Additional Features include Trendelenburg & Reverse Trendelenburg, Manual Motion: 23″ maximum Longitudinal travel, Radiolucent Top, 6″ Trail, Patient Weight Capacity: 450 lbs., and is compatible with all major C-arm products. Accessories included are 1″ Radiolucent Table Top Pad. Oakworks Medical has collaborated with leaders in the medical specialties we serve to create cutting-edge table designs and patient positioning devices that balance the needs of both patients and practitioners. See tabs for more information.
- Most Cost-effective 3 Movement Imaging Table
- 2 Powered Motions / 1 Manual Motion
- Powered Motions: Height, Powered Trendelenburg tilt
- Manual Motion: 23″ maximum Longitudinal travel

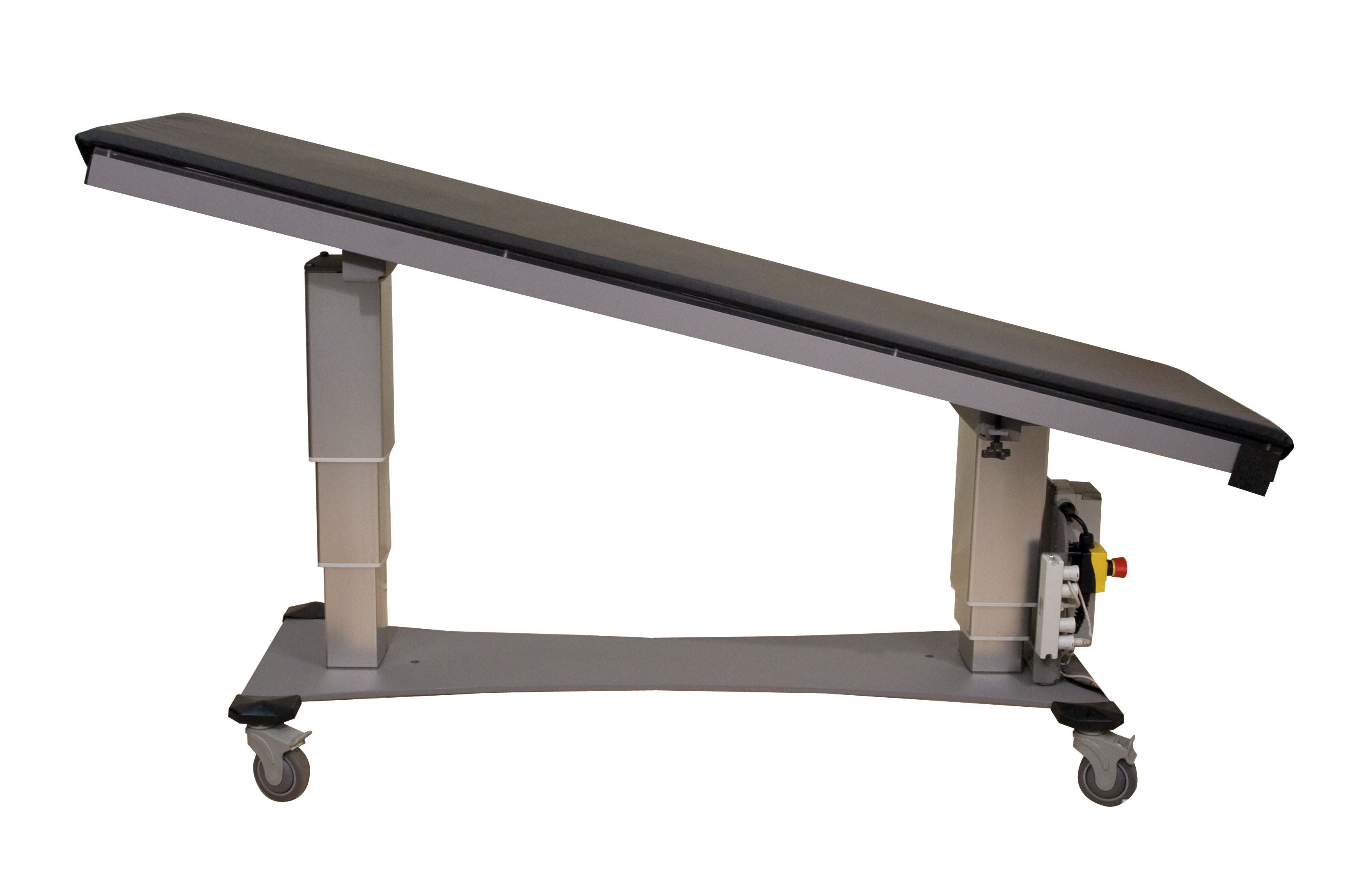

- +/- 14 ° Trendelenburg and reverse Trendelenburg tilt
- 23″ manual longitudinal travel
- 24″x78″ Radiolucent Top
- Robust Dual Lift Tower Design with 40″ distance between towers
- Best Height Range of 24″ to 40″

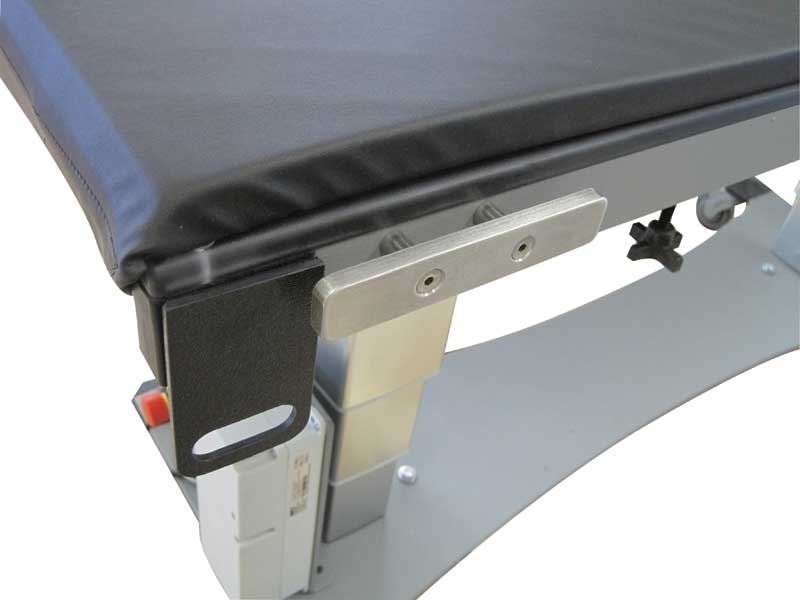

- 6″ Trail
- Patient Weight Capacity: 450 lbs.
- Compatible with all major C-arm products
- Warranty
- Electronic Height Range: 24″- 40″
- Widths: 24″
- Length: 78″
- Patient Weight Capacity: 450 lbs
- Weight: 390 lbs.
- Trendelenburg & Reverse Trendelenburg: Tilt ± 14°
- Manual Traveling Top: 23″ Overall travel
- Controls: 1 foot control & 1 hand control
- Warranty: 3 years parts, 2 years labor
- P/N: 61252-T01
Oakworks DTPM300 Brochure (click to view)
Available Options Sold Separately:
- 2″ Radiolucent Table Top Pad
- Carbon Fiber Arm Board
- Fluoro Extender
