Product Description:

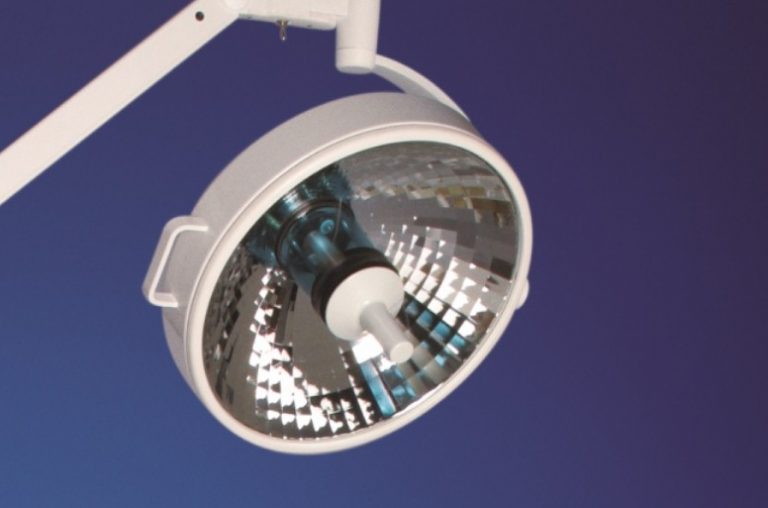

Medical Illumination Centurion Excel Single Ceiling Model Emergency Surgery Light with Battery Backup. The Centurion Excel Emergency Surgery Light with Battery Backup (051514B), incorporates all of the fine features of the Centurion Excel Series, with an emergency Backup System. Over 2 hours of uninterrupted light output, should a power outage occur.
The CH-SCB Emergency Surgery Light Features: An internal power control system of excellent components, will ensure light for the surgery, in the most adverse electrical conditions. Clear light, For improved shadow reduction the Centurion Excel uses a large 16″ diameter, multi-faceted reflector placed behind a color-correcting, heat absorbing glass cylinder. The Centurion Excel is output rated 64,500 lux (6000 foot candles) at 4,000 Kelvin color temperature. The CH-SCB is efficient, 2000 hour, 90 watt bulb is effortlessly replaced when needed. Light-head smoothly adjusts into perfect placement for optimum visualization during procedure. Additional lighting accessories are available to construct the perfect lighting system solution. The Centurion Excel Emergency Surgery Light w/Battery Backup is backed by a three (3) year manufacturer’s limited warranty*.
Please Note: The Medical Illumination Centurion Excel Emergency Surgery Light has been discontinued. Please call for comparable item and/or if you have questions please contact Empire Medical Suppliers Pty Ltd, your authorized Medical Illumination dealer. See tabs for more information.
- Provides over 2 hours of uninterrupted light output
- 16″ diameter, multi-faceted reflector placed behind a color-correcting, heat absorbing glass cylinder improves shadow reduction
- The Centurion Excel is output rated 64,500 lux (6000 foot candles) at 4,000 Kelvin color temperature
- Bulb life is 2000 hour
- 90 watt bulb is effortlessly replaced when needed
- Optional lighting accessories are available to construct the perfect lighting system solution
- Light-head smoothly adjusts into perfect placement for optimum visualization during procedure
- Three (3) year manufacturer’s limited warranty
- 6,000 foot candles (64,500 lux) output at 1 meter with 4,000º Kelvin color temperature
- Power supply circuitry, battery and charging system are fully contained in a steel enclosure 19″W x 7.5″H
- Enclosure serves as the base for the lighting fixture
- Multiple power inputs include: 115 VAC 50/60 Hz
- Operating voltage range 110-125 VAC or 220-250 VAC
- A lead/acid battery supplies backup power
- Automatic switching device is incorporated for battery operation in the event of power failure
- Output of circuitry is 12 VDC, 8.0 Amp to power a 12 Volt 90 Watt halogen bulb
- Battery Life, is sufficient to power the 12 Volt 90 Watt bulb for a minimum of 2 hours
- The battery charges will plugged into an AC outlet, and is fully charged within 8 hours
- The charging system incorporates a mechanism which prevents overcharging of the battery.
- UL Classified
- CE
Medical Illumination Centurion Excel Emergency Surgery Light w/Battery Backup Brochure (click to view)
Available Options Sold Separately:
- Medical Illumination Centurion Excel Emergency Surgery Light w/Battery Backup: CH-FMB
- Centurion Excel Wall Mount Emergency Surgery Light w/Battery Backup: CH-WMB
